Surfbee Productseries

ADCPs (Acoustic Doppler Current Profilers) have long been part of the basic equipment in everyday hydrological measurement.

To be able to work variably with ADCPs even at inaccessible measuring points, remote contral boats are increasingly being used. These so-called USVs (unmanned surface vehicle or autonomous surface vehicle) offer not only a high degree of flexibility in use but also increased work safety.

Surfbee offers various platforms that simplify work even in difficult flow conditions thanks to excellent handling and stable and constant measurement transects, which also increases data quality. Measurement teams can concentrate more on the measurements themselves, Surfbee provides maximum support with control, whether moving boat or stationary measurements.

In addition to flow measurement, the option of bathymetry is also supported. The simple mission planning with the Surfbee-App on the handheld device makes the combination easy and user friendly. Powerful engines and a compact design with an inflatable boat hull optimize the versatile application range.


Experience a new, unparalleled USV experience with increased data quality with the Surfbee platforms:

What is the difference?

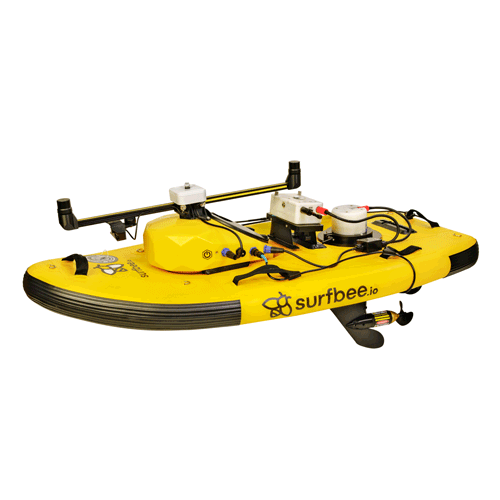

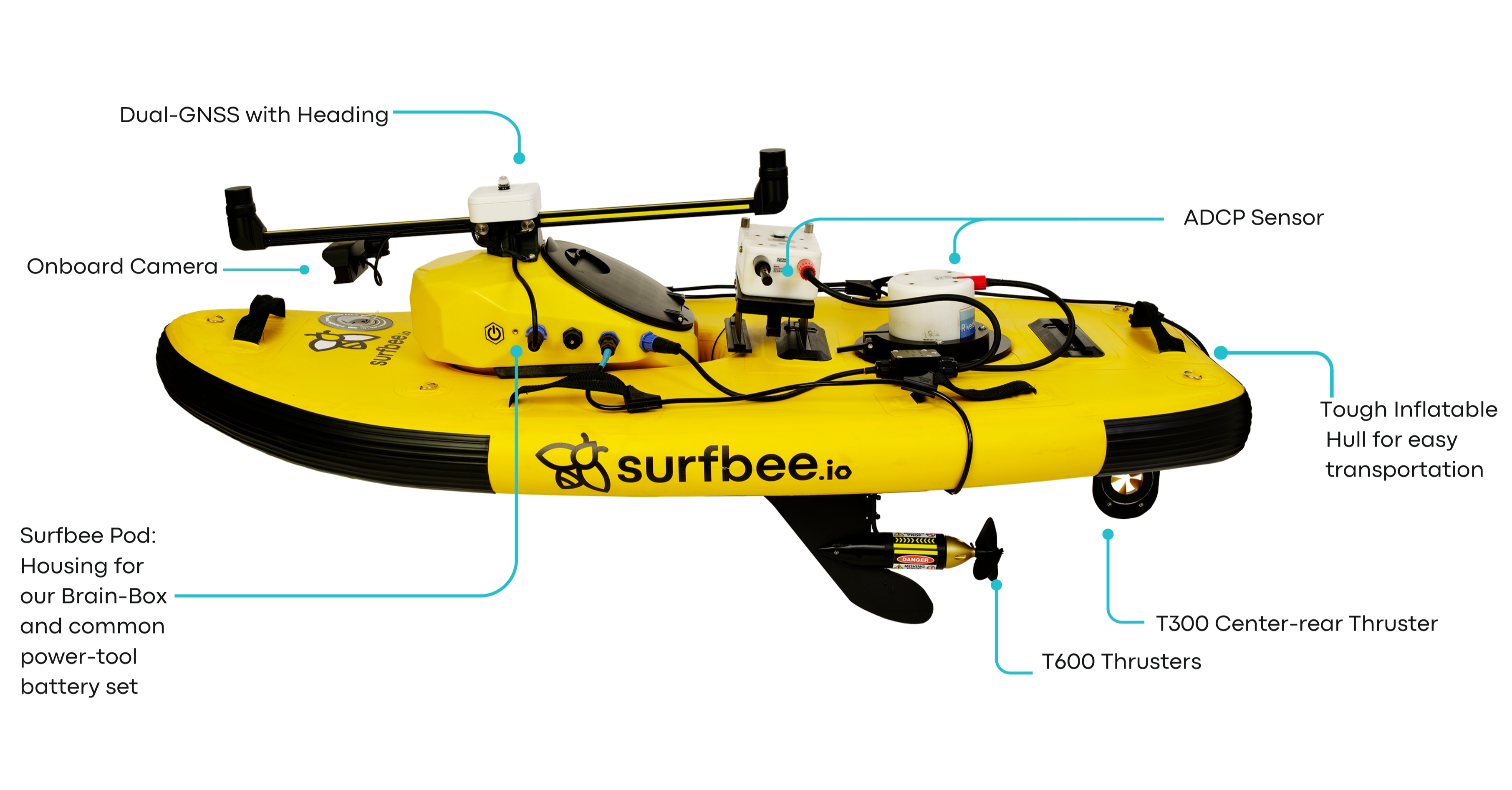

Surfbee Flow Seeker

1. Max Speed: 4m/s (3 m/s cruise)
2. Minimal Depth: 0.25 m
3. Dimensions: 1.65 x 0.75 x 0.1 m
4. Sensor Integration: Multiple payloads up to 10 kg Sensor (e.g. SonTek M9)

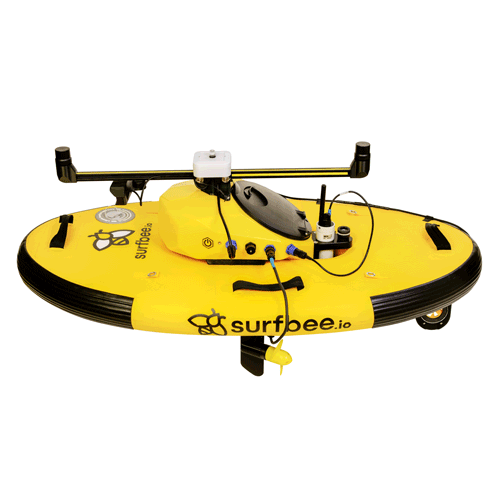

Surfbee Flow Finder

1. Max Speed: 2 m/s(forwards) 0.8 m/s (sideways)
2. Minimal Depth: 0.14 m
3. Dimensions: 1.2 x 0.7 x 0.1 m
4. Sensor Integration: Sontek RS5 (only)

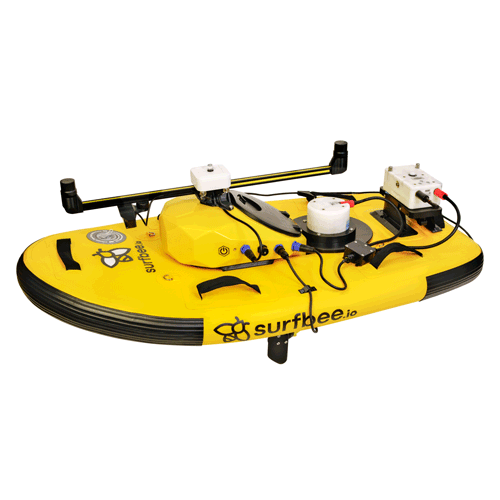

Surfbee Flow Scout

1. Max Speed: 1.8m/s(forwards) 0.8 m/s (sideways)
2. Minimal Depth: 0.14 m
3. Dimensions: 1.35 x 0.7 x 0.1 m
4. Sensor Integration: Multiple payloads up to 8 kg Sensor (e.g. SonTek M9)


Surfbee accessories

Here you will find an overview of all accessories for the Surfbee Flow Scout, Flow Finder and Flow Seeker.

To the Surfbee accessories
