  • SKU: 35-57
Request a Quote
  • Description

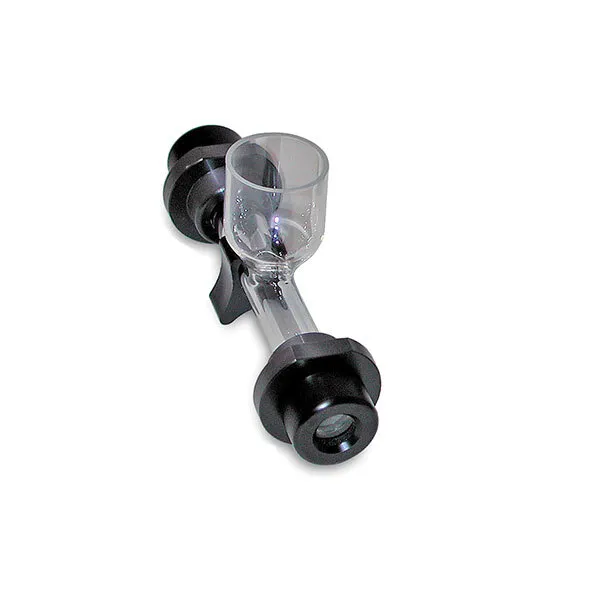

    This polarimeter tube has nylon plastic end caps and a centre fill opening with a wide, cup shaped filler; making it easy to fill, especially from a beaker. It is also ideal for more viscous samples.

    Our polarimeter tubes are manufactured to high quality standards conforming to ICUMSA recommendations and are compatible with most makes of polarimeter. Tube ends are precision ground with windows made from specially selected low strain glass in order to achieve the highest accuracy optical rotation measurement.

    • Available as 100 mm and 200 mm lengths
    • Precision engineered
    • Standard tubes
    • Suitable for ADP430 and polarimeters not requiring temperature control
  • Specifications
    General Specifications
    Code 35-57
    Tube Material Glass (SCHOTT® Boroscilicate)
    End Cap Material Nylon 66
    Inlet/Outlet Centre Cup
    Length 100mm
    Collar Size 30mm (ICUMSA Standard)
    Internal Diameter 8mm
    Volume 5.02 ml
    Window Material Silica
    Transmission 300-900 nm
    Seal (tube/end cap) Epoxy Resin

    Spare Parts
    Window (Cover Glass) 35-60
    Washers 35-64
    End Cap 35-68
