Drinking Water Panel

SKU: 8C-11340

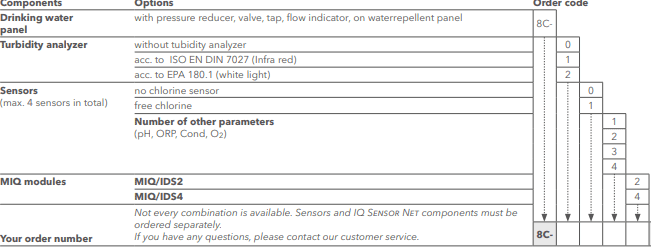

Option

Request a Quote

Description

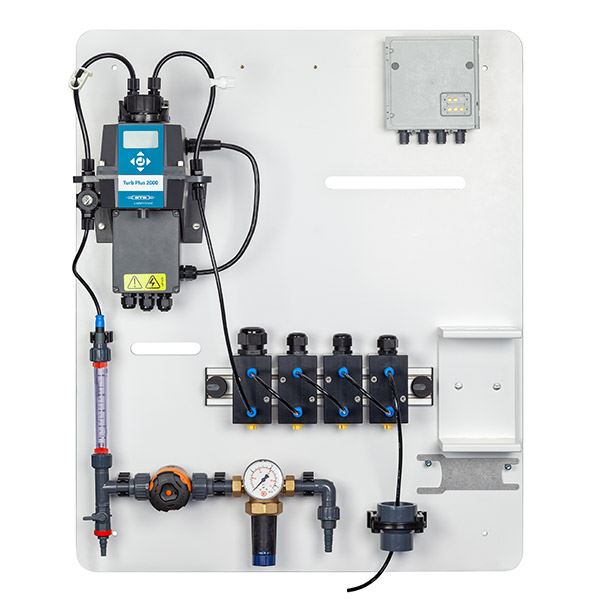

Pre-assembled Drinking Water Panel for monitoring turbidity, pH, conductivity, redox, oxygen and free chlorine.

Our Drinking Water Panel according to your wishes

Each Drinking Water Panel is equipped with piping, pressure reducer, valve, tapping valve, flow indicator and maintenance console. The version of the measuring panel tailored to your needs also includes the necessary tubing and flow cells.

Specifications

Outputs Relais: Power outputs: Digital:	Number selectable (mA) Number selectable Profinet, Profibus, Modbus RTU, Modbus TCP, Ethernet/IP
Data logger:	Data memory for up to 525,600 data sets
USB interface:	Included as standard on all panels
Electrical power supply IQ Sensor Net:	100 … 240 VAC (50/60 Hz), alternative 24 V AC/DC Turbidity analyzer: 100 ... 240 VAC (47–63 Hz), 80 VA
Sample composition:	5 ... 45 °C (41 ... 113 °F); inlet pressure max. 6 bar; salinity or chloride: 500 mg/l
Mechanics:	Panel: PVC rigid foam; IQ Sensor Net: Polycarbonate with 20 % glass fibre; Turbidity analyzer: ABS Flow-through cells/piping: PVC Tubing: PU
Dimensions:	850 x 700 x 225 mm (H x W x maximum D)
Weight:	Without/with Turbidity analyzer approx. 10 kg/approx. 12 kg
Certifications:	CE, UKCA
Warranty:	Varies, depending on the sensor, transducer, analyzer, etc.
