| Water Velocity Profiling |
|
| Profiling Range |
0.1-6 m (*1)
|
| Velocity Range |
±5 m/s |
| Accuracy |
1% ±0.002 m/s
|
| Resolution |
0.001 m/s |
|
Number of Cells
|
Up to 128
|
| Cell Size |
2.5-30 cm
|
| Data Output Rate |
1.0 Hz |
| Bottom Tracking |
|
| Depth Range |
0.1-6 m (*1) |
| Accuracy (*2) |
1% ± 0.002 m/s |
| Resolution |
0.001 m/s
|
| Depth Measurement |
|
| Range |
0.1-6.0 m (*1) |
| Accuracy |
1% ±0.005 m |
|
|
| Sensors |
|
| Temperature Sensors |
Resolution: ±0.01°C
Accuracy: ±0.5°C |
| Compass/Tilt Sensor |
Range: ±180° Pitch/Roll, 0-360° Heading
Heading Accuracy: ±2°
Pitch/Roll Accuracy: ±1° |
|
|
| Transducers |
|
| Total Number |
Five, 3.0 Mhz |
| Beam Angle |
25°
|
| Beam Width |
3° |
| Bandwidth |
25%
|
|
|
| Battery Characteristics |
|
|
Input Voltage
|
3.3-4.2 VDC
|
| Power Source - Li-Ion |
1x size 18650, Tenergy, Type 30016-04, 3.7Vdc, 2600mAh
|
| Battery Life - 1 x size 18650 |
Seven hours of continuous use, typical settings (*3) |
| Power Consumption |
1.0 W (Average)
|
| Dimensions |
19.2 mm x 69.7 mm |
| RTK Rover Battery Life 1 x size 18650 |
5 hours continuous use, typical settings
|
| RTK Base Station 1 x size 18650 |
14 hours of continuous use, typical settings |
|
|
| Communications |
|
| Radio Protocol |
Bluetooth Low Energy (BLE5)
|
| Range |
100 m |
| Bluetooth Compliance |
FCC Part 15, FCC ID: XPYNINAB30
ISED Certification: 8595A-NINAB30 |
|
|
| Environmental |
|
| Operation Temperature |
-20° to 70°C (-4°F to 158°F) |
| Storage Temperature |
20° to 70°C (-4°F to 158°F) |
| Storage with Battery Temperature |
-20° to 45°C (-4°F to 113°F) |
|
|

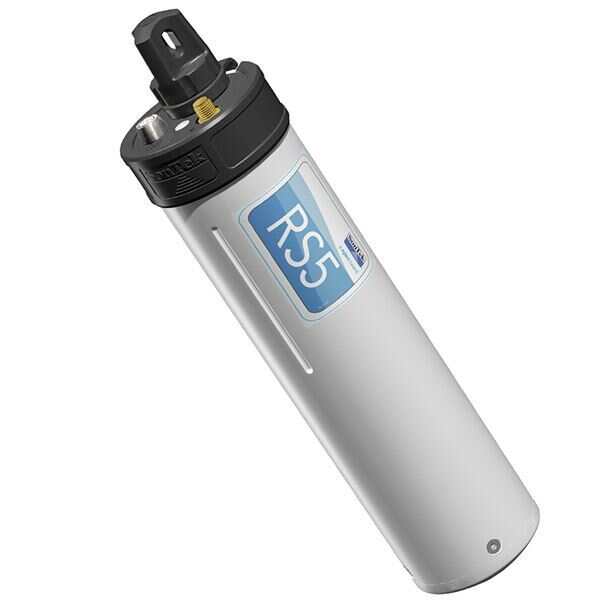

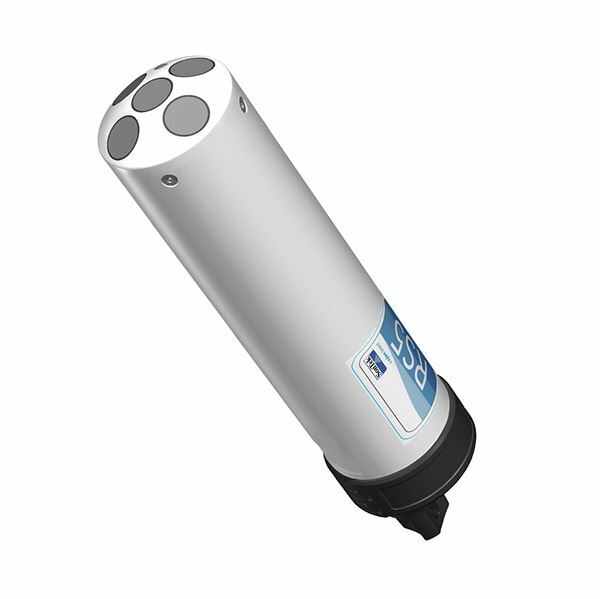

| RS5 Physical Properties |
|

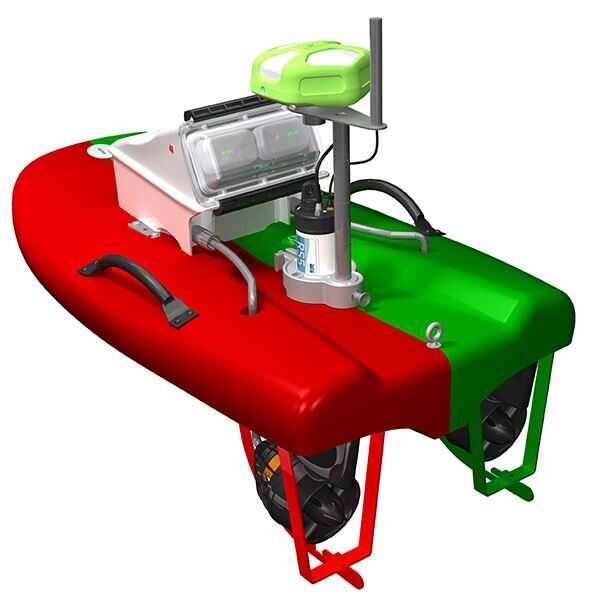

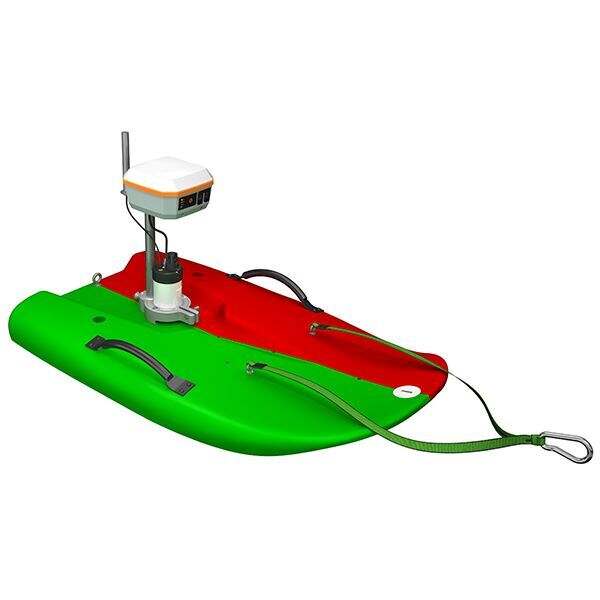

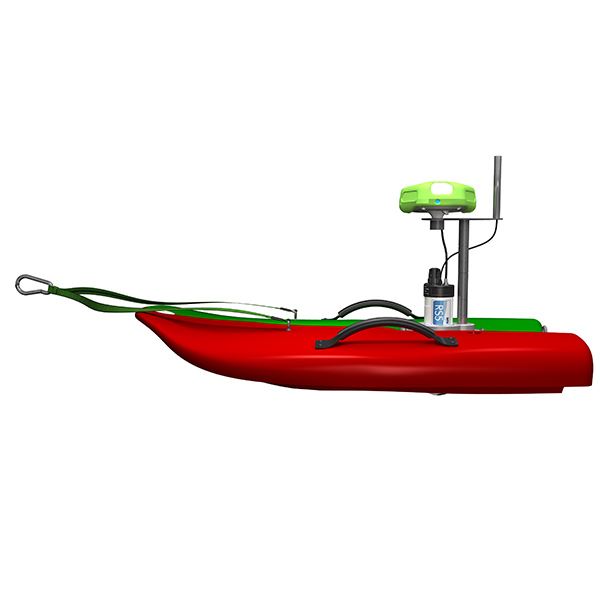

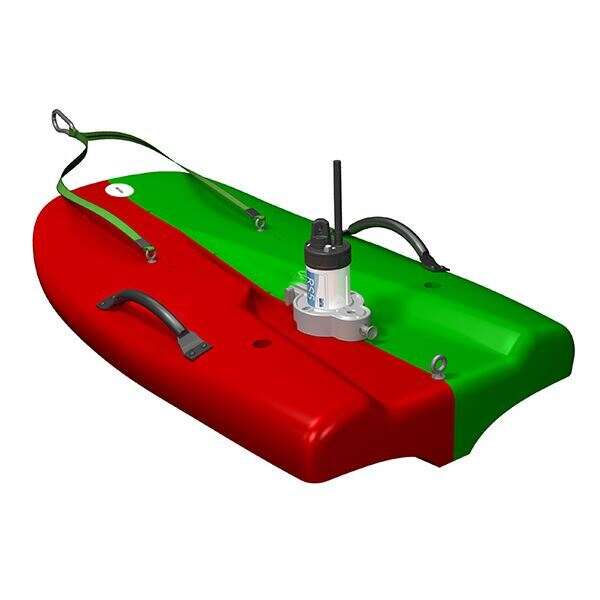

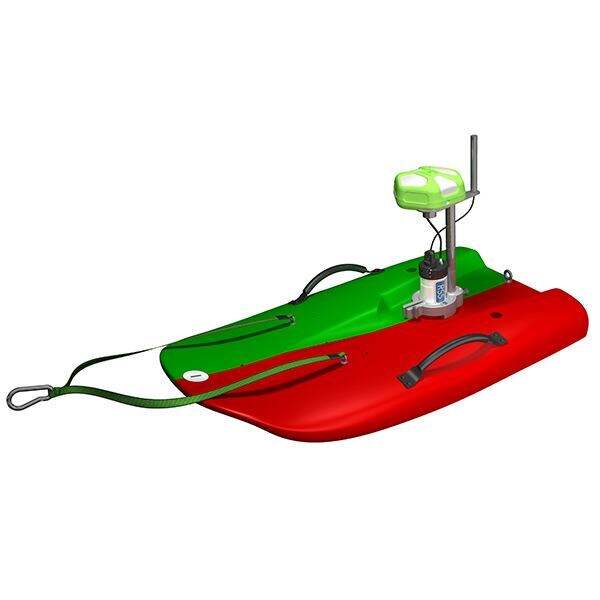

| Dimensions - TB-Micro |
80 cm (31.5”) x 46.5 (18”) cm
x 15 cm (6”)
|
| Weight in Air - TB-Micro |
4.2 kg (9.3 lbs) |
|
Dimensions - RS5 Unit
|
24 cm (9.5”) x 5 cm (2.2”)
|
| Weight in Air - RS5 Unit |
0.45 kg (1.0 lbs) |
|
Weight in Water - RS5 Unit
|
0.15 kg (0.33 lbs)
|
| Waterproof Rating |
IP-67 |
|
|
| DGNSS |
|
| Horizontal RMS |
SBAS (WAAS): <0.3 m (0.98 ft) |
| 2DRMS |
SBAS (WAAS): <0.6 m (1.96 ft) |
| Frequency |
Multi-frequency, multi-constellation
|
| GNS3M Atlas Subscription |
Activate through manufacturer's App
|
|
|
|
|
| SonTek-RTK |
|
| Horizontal Accuracy |
(Quality 4) < 0.02 m |
| Vertical Accuracy |
(Quality 4) < 0.04 m |
| Frequency |
L1C/A, L2C, Multi-GNSS
|
| Base-to-Rover Range |
250 m Line of sight
|
*Additional notes:
1 Maximum range will vary with environmental conditions.
2 Bottom velocity accuracy.
3 When Using provided SonTek USB radio with antenna.
