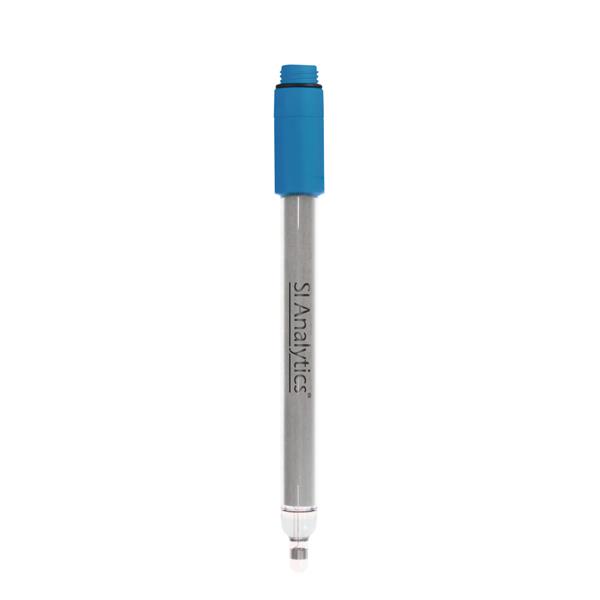

ScienceLine Metal Glass Reference Electrode - SI Analytics

ScienceLine Metal Glass Reference Electrode - SI Analytics

  • SKU: 285102090
Request a Quote
  • Description

    Metal electrode with A membrane glass as reference

    Variants
    Art.-No. Name Content
    285102090 Ag 62 RG Pt bearing - silver coated
    285102100 AgCl 62 RG Pt bearing - silver coated, chlorinated
    285102110 AgS 62 RG Pt bearing - silver coated, sulfidized
    285102070 Pt 62 RG Pt
    285102140 Pt 62 RG IDS Pt, IDS, digital plug

    Highlights:

    • Metal electrode
    • A membrane glass as reference

    ScienceLine – The proven high-end laboratory electrodes

    In research and development, manufacturing and quality control, our ScienceLine electrodes have become standard for the most demanding measurement tasks. Each electrode has an individual serial number and pH metal combination electrodes are supplied with a quality certificate, better making documentation simple and better traceable. We have kept on improving the glass membrane shapes and types to make the electrodes even more robust, durable and easier to clean. Furthermore, they achieve stable measurement values even faster.

      Overview Page ScienceLine Electrodes

    Here you can find out more about titration:

     Blog: Which electrodes can still be used for titration?

     Blog: Which pH electrode do I need for my acid-base titration application?

     Blog: Titration Theory and Practice - A practical guide

  • Specifications
    ScienceLine Ag 62 RG AgCl 62 RG AgS 62 RG
    Art.-No. 285102090 285102100 285102110
    Sensor Pt bearing - silver coated, ring 6 mm Ø Pt bearing - silver coated, chlorinated,
    ring, 6 mm Ø    		 Pt bearing - silver coated, sulfidized, ring, 6 mm Ø
    Reference A glass
    Temp. sensor -
    Measuring range 0…14 pH
    Temperature range -5...+100 °C
    Shaft length 120 mm
    Shaft diameter 12 mm
    Connection Plug head
    ScienceLine Pt 62 RG Pt 62 RG IDS
    Art.-No. 285102070 285102140
    Sensor Pt, ring, 6 mm Ø
    Reference A glass
    Temp. sensor -
    Measuring range 0…14 pH
    Temperature range -5...+100 °C
    Shaft length 120 mm
    Shaft diameter 12 mm
    Connection Plug head 1,5 m fixed cable, digital plug

Downloads

  • handbook

    pH Handbook (English)

    A guide with helpful practical tips

    Contents:

    • Basic concepts of potentiometry and pH measurement
    • Structure of pH electrodes
    • Potentiometry of the pH electrode
    • Buffer solutions and safety in pH measurement
    • Measuring equipment and measuring set-up
    • Practical pH measurement
    • Recommendations for use, maintenance and care of electrode
    Download file

    Titration Handbook (English)

    A guide with helpful practical tips

    Download Titration Handbook

    Content:

    • Basics of titration
    • Volume measurement devices, manual and automatic titration
    • Sample handling
    • Sensors and reagents
    • Titration parameters and calculations
    • Applications / Photometric titrations / Karl Fischer Titration / Verification of the titration
    Download file
  • Manual

    Metal Glass Combination Electrodes (Manual, DE, EN)

    for the Titration
    Document No.: T814183
    Download file
