Multi-parameter portable meter MultiLine® Multi 3630 IDS

SKU: 2FD570

Option

Request a Quote

Description

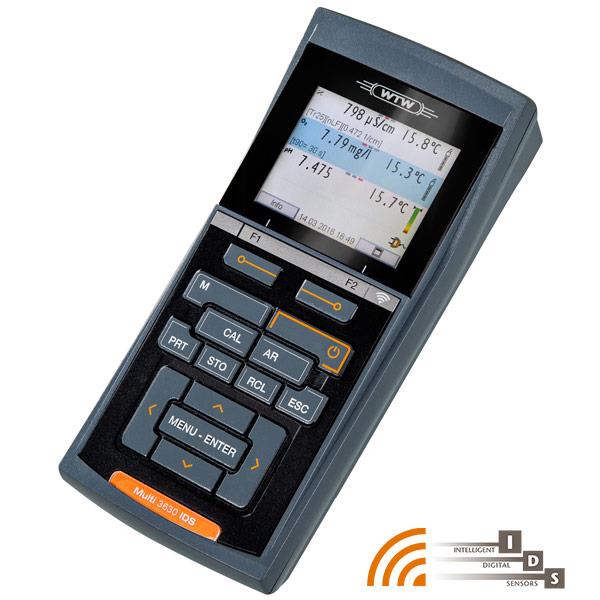

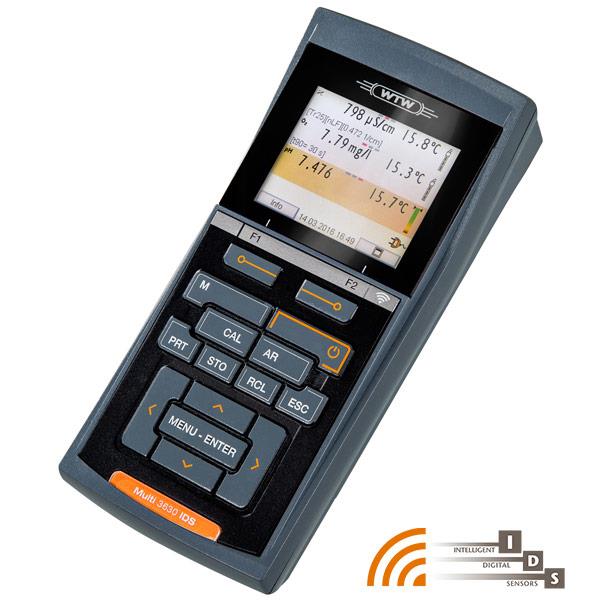

MultiLine® 3630 IDS - Digital multiparameter portable meter

MultiLine® 3630 IDS: High-quality digital portable IDS multi-parameter measuring device with three universal measuring channels.

Variants
Art.-No.	Name	Description

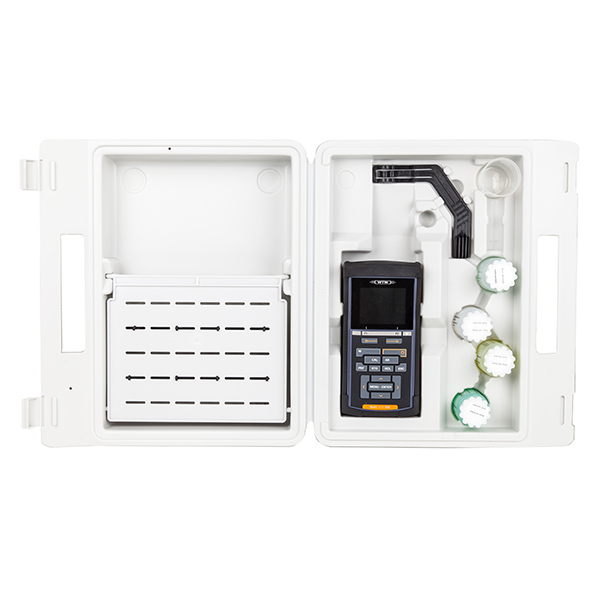

2FD570	MultiLine® 3630 IDS	Single unit in field case with buffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro
2FD57F	MultiLine® 3630 IDS Set F	Multi set in field case with IDS sensors (SenTix® 940, TetraCon® 925, FDO® 925, QSC-Kit (EVE obligatory)), with buffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, stand, beaker, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro
2FD57G	MultiLine® 3630 IDS Set G	Multi set in field case with IDS sensors (SenTix® 940-3, TetraCon® 925-3, FDO® 925-3, QSC-Kit (EVE-pflichtig)), with buffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, stand, beaker, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro
2FD57V	MultiLine® 3630 IDS Set KS2	Single unit in field case with QSC Kit (EVE obligatory), buffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, stand, beaker, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro
2FD57W	MultiLine® 3630 IDS Set WL	Single unit in field casebuffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro, IDS WLM-M Module

Highlights:

One unit for up to four parameters: pH/ORP, dissolved oxygen, conductivity, turbidity
Measure, display and document three parameters plus secondary information
Wireless ready
Digital sensor detection
Three galvanically isolated sensor inputs

Triple – 3 channels, 4 parameters: Three measuring channels, freely combinable for same or different parameters: The simultaneous multi-parameter measurement without compromise. Use also the wireless modules together with the nee IDS plug head sensors, be independent from cables and measure conveniently also at hardly accessible locations. Another highlight: This meter allows the operation with the digital multi-parameter probes MPP 910 IDS and MPP 930 IDS.

The Multi 3630, just like the MultiLine® series, has a brilliant color graphic display and two USB interfaces. The batteries can be charged directly in the device. The activing user administration can also be used alternatively to mark measuring points. The 10,000 data sets include up to three main parameters, three temperature values as well as the water depth if using the depth probe.

The scope of delivery includes the MultiLab® Importer to capture data via Excel® as well as the MultiLab® User (user administration).

Overview-page portable IDS meters

Learn more about pH sensors:

Blog: Which pH electrode do I need?

Blog: What is pH?

Blog: Calibration and adjustment of a pH electrode

Specifications

MultiLine®	3630 IDS	3630 IDS Set F	3630 IDS Set G
Art.-No.	2FD570	2FD57F	2FD57G
Parameters	pH, ORP, dissolved oxygen, conductivity, turbidity
Channels	3
Measuring range air pressure	300 ... 1100 mbar
Accuracy air pressure	± 4 mbar
Operating temperatur	-10 °C ... + 55 °C with pluged-in power supply connected (batterie charging): 0 °C ... + 40 °C
Protection class	IP 67
Data storage	Manually: 500, Automatically: 10.000
Contents	Single unit in field case with buffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro	Multi set in field case with IDS sensors (SenTix® 940, TetraCon® 925, FDO® 925, QSC-Kit (EVE obligatory)), with buffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, stand, beaker, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro	Multi set in field case with IDS sensors (SenTix® 940-3, TetraCon® 925-3, FDO® 925-3, QSC-Kit (EVE-pflichtig)), with buffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, stand, beaker, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro

MultiLine®	3630 IDS Set KS2	3630 IDS Set WL
Art.-No.	2FD57V	2FD57W
Parameters	pH, ORP, dissolved oxygen, conductivity, turbidity
Channels	3
Measuring range air pressure	300 ... 1100 mbar
Accuracy air pressure	± 4 mbar
Operating temperatur	-10 °C ... + 55 °C with pluged-in power supply connected (batterie charging): 0 °C ... + 40 °C
Protection class	IP 67
Data storage	Manually: 500, Automatically: 10.000
Contents	Single unit in field case with QSC Kit (EVE obligatory), buffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, stand, beaker, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro	Single unit in field casebuffer STP 4 and STP 7, 0,01 mol/l KCl conductivity standard solution, short instruction manual, CD-ROM and rechargeable batteries, driver software for USB, cable, power supply, armoring SM Pro, IDS WLM-M Module

Downloads

Manuals

Multi 3630 IDS (German)
Taschengerät,
Bedienungsanleitung
Download file

Multi 3630 (English)
Handheld meter,
Operating Manual
Download file

Multi 3630 IDS (French)
Handheld meter,
Operating Manual
Download file

Multi 3630 IDS (Spanish)
Handheld meter,
Operating Manual
Download file

OxiTop®-IDS Multi 3630/3620 IDS (German)
Wireless operation of OxiTop-IDS measuring heads,
Operating Manual
Download file

OxiTop®-IDS Multi 3630/3620 IDS (English)
OxiTop-IDS Multi 3630/3620 IDS,
Operating Manual
Download file

OxiTop®-IDS und OxiTop®-i WTW (English)
OxiTop®-IDS und OxiTop®-i WTW,

Manual
Download file

OxiTop®-IDS (/B) Multi 3630/3620 IDS (Spanish)
FUNCIONAMIENTO INALÁMBRICO CABEZALES DE MEDICIÓN OXITOP®-IDS (/B),

INSTRUCCIONES DE OPERACIÓN
Download file

OxiTop®-IDS (/B) Multi 3630/3620 IDS (French)

FONCTIONNEMENT SANS FIL DES TÊTES DE MESURE OXITOP®-IDS (/B),

MODE D'EMPLOI
Download file
Handbooks / Whitepaper
pH Handbook (English)
A guide with helpful practical tips

Contents:

Basic concepts of potentiometry and pH measurement

Structure of pH electrodes

Potentiometry of the pH electrode

Buffer solutions and safety in pH measurement

Measuring equipment and measuring set-up

Practical pH measurement

Recommendations for use, maintenance and care of electrode

Download file
Conductivity Handbook (English)
A guide with helpful practical tips

Content:

Fundamentals - conductivity

Calibration and analytical quality assurance

Measurement and analytical quality assurance

New measurement technologies and specific applications

Optical oxygen measurement and more...

Download file
Oxygen Handbook (English)

Content:

Fundamentals - Oxygen sensors

Calibration and analytical quality assurance

Measurement and analytical quality assurance

Optical oxygen measurement

and more...

Download file
Flyers / Brochures / Catalogues

IDS-Taschengeraete
Brochure, German
Download file

MultiLine IDS (Flyer, English, 999180US)
Flyer, 8 Pages, English, 999180US,
"Portable multiparameter measurement of pH, dissolved oxygen, conductivity and turbidity"
Download file
Software
MPP 910 IDS, 900 IDS - Firmware Update - V1.03
Download and installation notes:

Please note:
Because of optical interferences with the surface the weight has to be removed during measurements with this sensor.

Please carefully follow the instructions given in the Readme pdf file.

Version history – innovations

•V1.03: Update for operating a turbidity sensor VisoTurb® 900-P
Download file
Multi 3620 IDS, 3630 IDS, Multi 36x0 - Firmware Update - Version V3.14
Because of continuous improvement of internal performance we always recommend using the latest firmware version.

Download and installation notes:

Please note:
The cable for the serial USB interface is part of the delivery.

For proper operation of the USB interface a special driver is required.
For installation of this driver please read below.

Existing wireless modules (only IDS WLM-M) have to be updated (V3.01) before operation. Please find the corresponding firmware update below.

Version history – innovations:

Version V3.14:

OxiTop-IDS: Fixed a bug when inserting spaces in the set description

OxiTop-IDS : Problem with multiple creation of Cal-Sets fixed

Fixed a bug that caused the device to crash after AutoPrt.

Version V3.13:

The authorizations for MultiLab User can also be assigned without a connected sensor

Version V3.12:

Detection of the conductivity measuring cell 4320W (YSI) has been implemented

Version V3.11:

Fixed a bug with manual data saving (missing data).

Revision of the AutoRead functionality when saving manually. "Frozen values" (HOLD function) are retained until a new measurement is initiated.

AutoSto extension: If desired, the measurement can be resumed automatically if there is a change in the sensor configuration or a temporary sensor failure has been resolved.

V3.10:

Maintaining automatic storing when changing the sensor connectivity.

Refreshing data output when during transfer on external storage data sets are missing.

V3.09:

Extension of the AutoPrint/automatic logger function: It can be set to continue the function if there is a change to the connected sensor.

Bugfix: Time query when ECO mode (OxiTop-IDS®) is active has been corrected.

Bugfix MultiLab User.

Notification when the manual memory is full.

V3.08:

Solves a problem during multi-parameter measurement with AutoRead when a FDO® 925 is connected.

V3.07:

OxiTop® Mode

New items in the OxiTop Service menu: It is possible to save the data structure on a USB stick, so that if the Multi 36x0 IDS is defective, the structure can be completely taken over with a replacement device and the data can be retrieved from the heads. When using multiple devices, a separate stick is recommended for each device.

OxiTop®-IDS measuring heads that were operated on an IDS Gate can be registered again on a Multi 36x0 without any problems.

Electrochemistry

Fixed a problem when switching from manual to calibrated cell constant on the TetraCon® 925
Please download the latest version of the instruction manual from www.xylemanalytics.com

V 3.06:

Enhancements in the OxiTop mode

Solves a problems of recognition of older software versions of the OxiTop®-IDS heads (possible failure of AutoTemp start)

Synchronization of decimal places between displayed and transferred measurement data

Note on possible unavailability of the head because of engaged ECO mode when pressing RCL_

Other improvements

Full display of the PCB number of each sensor in the info display

V 3.05:

Enhancements in the OxiTop mode

Display of last measured data by press on RCL button in the offline mode, (no wireless connection to the head!).

Mode BOD Special: When altering the temperature the change of the dependent parameter (range, sample volume etc.) will be shown on the display.

General optimization when reading the data from the heads.

Deletion of all measured data in the OxiTop mode (in case of corrupted data structure) on the internal SD card of the meter: System->Service->Reset of OxiTop Set Management. Note: All sets will be deleted, the settings of the last one will remain! In case of existing measured data they have to be read directly from the head’s display (one data set per day!)

Enhancements in the normal mode with IDS sensors

ORP measurement: If desired measured data can be displayed in relation to a hydrogen standard electrode potential. Will be selected by press on M (mode)

Enhancements and bug fixes in the wireless communication with IDS sensors

Improvements with the data transfer via USB and USB printer from the automatic storage

Note: Automatic measurements with an interval of 1 s cannot be printed via USB printers, for an interval of 5 s the meter has to be connected to a power supply.

V 3.04:

Enhancements in the OxiTop mode

Display of last measured data by press on RCL button in the offline mode, (no wireless connection to the head!).

Mode BOD Special: When altering the temperature the change of the dependent parameter (range, sample volume etc.) will be shown on the display.

General optimization when reading the data from the heads.

Deletion of all measured data in the OxiTop mode (in case of corrupted data structure) on the internal SD card of the meter: System->Service->Reset of OxiTop Set Management. Note: All sets will be deleted, the settings of the last one will remain! In case of existing measured data they have to be read directly from the head’s display (one data set per day!)

Enhancements in the normal mode with IDS sensors

ORP measurement: If desired measured data can be displayed in relation to a hydrogen standard electrode potential. Will be selected by press on M (mode)

Enhancements and bug fixes in the wireless communication with IDS sensors

Improvements with the data transfer via USB and USB printer from the automatic storage

V 3.03:

Introduction of the set structure also in pressure mode p (up to 12 measuring heads per sample)

Display of the set settings without reading in the heads (left cursor key)

Improvements in head registration

Improvements in the printer output (even without connecting the power supply unit)

Priority USB-B over USB-A

Optimized data acquisition for OxiTop®-IDS heads

General optimization and bug fixes

V 3.02: Enhancements for OxiTop-IDS

Introduction of Eco-Mode for optimum extension of operation time

Extension of definable measuring period up to 180 days

Meter driven synchronization of date/time for the heads

Representation of single curves

Recall of stored intermediate values in pressure mode p

New design of pop-up messages

GLP functionality

General enhancements

Please download also our new instruction manuals (OxiTop®-IDS (/B)
Multi 3630/3620 IDS) for Multi 3620/3620 IDS and the OxiTop® heads!
V3.01: Bug fix of incorrect data of volumes in the BOD standard and BOD Special mode in the output file header. This bug had no impact on calculations.
V3.00:
- Enhanced for operation of OxiTop^®-IDS
V2.19:
-Solving a problem when doing a continuous automatic printing with connected USB printer
V2.18:
-Solves a problem when switching the meters on or off: If the meter does not turn on, first perform a reset: Please press simultaneously “Menu – Enter” and “On/Off”, this will boot the meter automatically (without losing data).
V2.15:
-General optimizations and minor bug fixes
V2.15:
-General optimizations and minor bug fixes
Download file
MultiLab Importer-Setup32
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data)

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
MultiLab Importer-Setup64
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data))

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
MultiLine® Multi 3620 IDS/3630 IDS, Multi 36x0- Firmware Update V3.14
Download and installation notes:

Before installation please read the instruction manual.
System Requirements:
Microsoft Windows 2000, Windows Server 2003, Windows XP, Windows Vista or Windows 7

Version history – innovations:

Version V3.14:

OxiTop-IDS: Fixed a bug when inserting spaces in the set description

OxiTop-IDS : Problem with multiple creation of Cal-Sets fixed

Fixed a bug that caused the device to crash after AutoPrt.

Version V3.13:

The authorizations for MultiLab User can also be assigned without a connected sensor

Version V3.12:

Detection of the conductivity measuring cell 4320W (YSI) has been implemented

Version V3.11:

Fixed a bug with manual data saving (missing data).

Revision of the AutoRead functionality when saving manually. "Frozen values" (HOLD function) are retained until a new measurement is initiated.

AutoSto extension: If desired, the measurement can be resumed automatically if there is a change in the sensor configuration or a temporary sensor failure has been resolved.

V3.01: Allows the conventional operation of OxiTop®-IDS heads which had been working at an IDS Gate.
V3.00: Update for connecting OxiTop^®-IDS measuring heads
Download file
MultiLab User - Software Update V2.00
MultiLab User (PC-Software) for generation of User Administration for following devices: Turb ® 750 Serie and Multi 3630 IDS, Multi 9630 IDS, Multi 3620 IDS, Multi 9620 IDS, Multi 3510 IDS and Multi 9310 IDS.

No administration rights required.
Requirements: Win 10, free USB connecion or USB-Hub (USB driver)
Version: V2_00
Installation: Unzip "Install_MulitLabUser_V2-00.zip" and install by following on-screen instructions
Download file

Software Update Windows 10 VCP Driver
VCP Driver,
MultiLine, inoLab, ProfiLine, HandyLab and Lab,
Software Update for Windows 10
Download file

MultiLine® Multi 3620 IDS/3630 IDS, inoLab® Multi 9620 IDS/9630 IDS - Firmware Update IDS WLM-M V3.01
Download and installation notes:
Before installation please read the instruction manual.
System Requirements:
Microsoft Windows 2000, Windows Server 2003, Windows XP, Windows Vista or Windows 7
Version history – innovations:
V3.01: Allows the conventional operation of OxiTop®-IDS heads which had been working at an IDS Gate.
V3.00: Update for connecting OxiTop^®-IDS measuring heads
Download file
