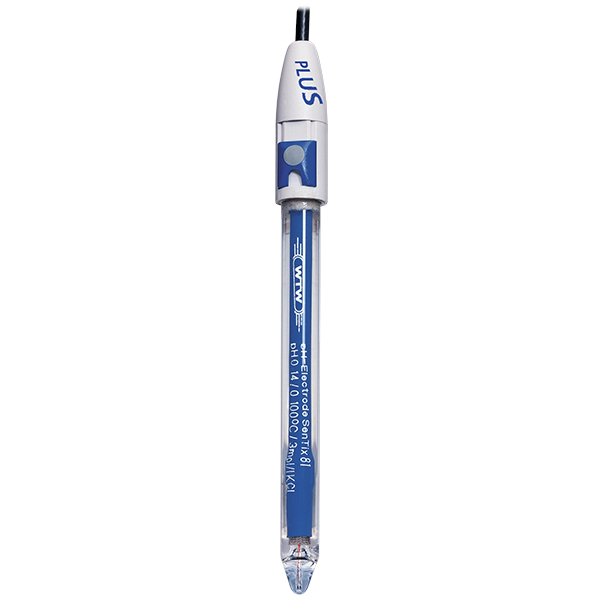

pH glass electrodes SenTix® 81-87 | refillable | with temperature sensor

pH glass electrodes SenTix® 81-87 | refillable | with temperature sensor

  • SKU: 103642
Request a Quote
  • Description

    The SenTix® 81-87 pH electrodes with their high-quality glass shaft and refillable 3 mol/l KCl liquid electrolyte and platinum diaphragm are suitable for demanding measurements in the laboratory. The platinum wire diaphragm offers optimum electrolyte flow without clogging and the liquid electrolyte offers fast response times. The electrodes can also be used in difficult samples. The cone shape of the membrane is impact-resistant and easy to clean. These electrodes have different temperature sensors (see table “Connections & variants”).

    The SenTix® 81-87 are particularly suitable for the following applications:

    Chemical: Industrial:
    • Diluted acids
    • Emulsions/suspensions
    • Cooling water, dyeing solutions, electroplating baths
    • Paper extract
    Water & Environmental: Beverages:
    • Saline solutions
    • Swimming pool water
    • Groundwater
    • Lake water, surface water, sea water
    • Drinking water
    • Soil extract
    • Beer, soda/lemonade
    • Fruit juice, vegetable juice, wine
    • Mineral water
    • Milk
    Cosmetics & Cleaning: Food:
    • Hair color
    • Mouthwash
    • Household cleaners
    • Coffee extract
    • Vinegar
    Pharma, Medical, Bio:
    • Enzyme solutions, gastric juice, infusion solutions,
      protein-containing liquids, serum, tris buffer solutions, urine


    The SenTix® 81-87 are available in various versions with different plugs and temperature sensors:

    Connections & variants
    Connections and Sockets
    Art.-No. Name Characteristics
    103642 SenTix® 81 NTC 30 kOhm, 1 m fixed cable with water-proof DIN and 4 mm banana plug
    103643 SenTix® 82 NTC 30 kOhm, 1 m fixed cable with BNC and 4 mm banana plug
    103810 SenTix® 83 Pt1000, 1 m fixed cable with water-proof DIN and 4 mm banana plug
    103811 SenTix® 84 Pt1000, 1 m fixed cable with BNC and 4 mm banana plug
    103812 SenTix® 85 Pt1000, 1 m fixed cable with BNC and 2x 4mm banana plug
    103813 SenTix® 86 NTC 30 kOhm, 1 m fixed cable with BNC plug and Cinch/RCA plug
    103814 SenTix® 87 NTC 10 kOhm, BNC plug and 2,5 mm jack plug, 1 m cable (for Sartorius devices)



      All pH electrodes   Our buffer solutions

    Here you can find out more about choosing the right pH electrode and answers to your questions:

     Blog: Which pH electrode do I need?

  • Specifications
    SenTix® 81 82 83 84
    Order no. 103642 103643 103810 103811
    Membrane shape Cone
    Shaft Glass
    Diaphragm Platinum wire
    Temp. sensor NTC 30kOhm Pt 1000
    Reference electrolyte KCl 3 mol/l Ag+ free
    Membrane resistance <600 MΩ
    Measuring range 0 … 14 pH
    Temp. range 0 … 100 °C
    Shaft length 120 mm
    Shaft diameter 12 mm
    Connection 1 m fixed cable with water-proof DIN and 4 mm banana plug 1 m fixed cable with BNC and 4 mm banana plug 1 m fixed cable with water-proof DIN and 4 mm banana plug 1 m fixed cable with BNC and 4 mm banana plug
    SenTix® 85 86 87
    Order no. 103812 103813 103814
    Membrane shape Cone
    Shaft Glass
    Diaphragm Platinum wire
    Temp. sensor Pt 1000 NTC 30kOhm NTC 10kOhm
    Reference electrolyte KCl 3 mol/l Ag+ free
    Membrane resistance <600 MΩ
    Measuring range 0 … 14 pH
    Temp. range 0 … 100 °C
    Shaft length 120 mm
    Shaft diameter 12 mm
    Connection 1 m fixed cable with BNC and 2x 4mm banana plug 1 m fixed cable with BNC plug and Cinch/RCA plug BNC plug and 2,5 mm jack plug, 1 m cable (for Sartorius devices)
