pH benchtop meter inoLab® pH 7310

SKU: 1AA310

Option

Request a Quote

Description

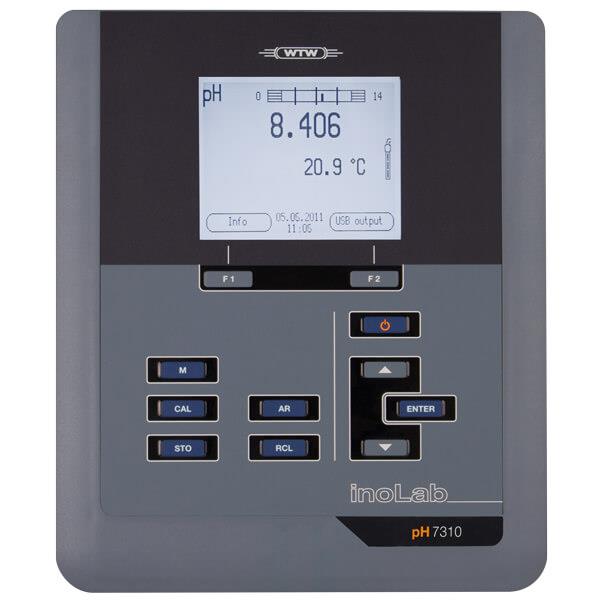

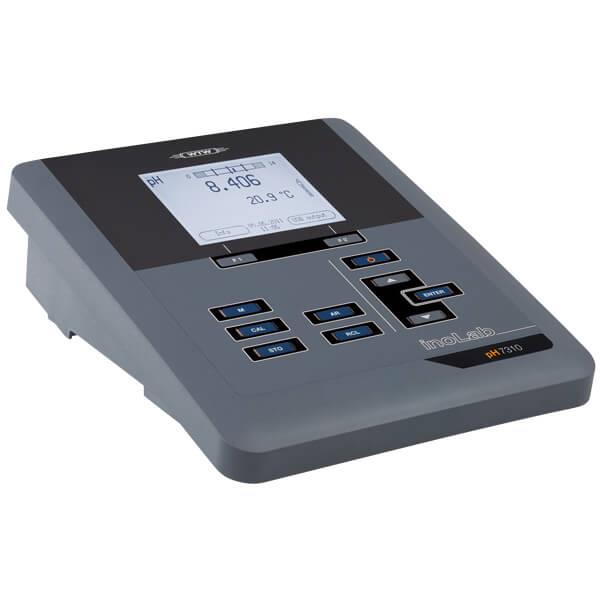

inoLab® pH 7310 Analog pH Lab Benchtop Meter

inoLab® pH 7310: Precise pH meter with documentation function to use in quality assurance, pharmaceutical industry and everywhere GLP-supported documentation is required

Variants
Art.-No.	Name	Description
1AA310	inoLab® pH 7310	Single unit (DIN connection) with universal power supply, stand, manual, CD-ROM with software and USB cable

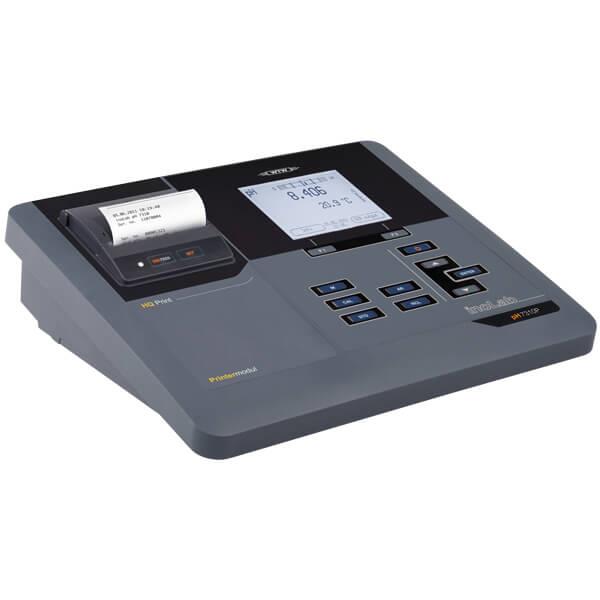

1AA310P	inoLab® pH 7310P	Single unit (DIN connection) with built-in printer, universal power supply, stand, manual, CD-ROM with software and USB cable
1AA312	inoLab® pH 7310 Set 2	Single unit with pH electrode SenTix® 41, Buffer 4, 7 and 10.01 and 3 mol/l KCl, universal power supply, stand, manual, CD-ROM with software and USB cable
1AA314	inoLab® pH 7310 Set 4	Single unit with pH electrode SenTix® 81, Buffer 4, 7 and 10.01 and 3 mol/l KCl, universal power supply, stand, manual, CD-ROM with software and USB cable

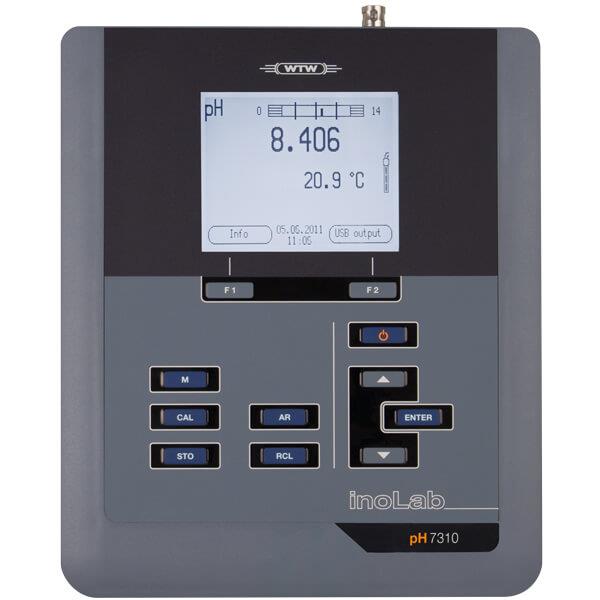

1AA320	inoLab® pH 7310 BNC	Single unit (BNC connection) with universal power supply, stand, manual, CD-ROM with software and USB cable
1AA320P	inoLab® pH 7310P BNC	Single unit (BNC connection) with built-in printer, universal power supply, stand, manual, CD-ROM with software and USB cable

Highlights:

Repeatable measuring results by automatic recognition of stable values
Monitoring of the optimum measuring range via CMC function
Secure and conveniant operation via text menus in a bright graphic display
Ideally suited for applications in quality assurance laboratories in all industries to support documentation according to GLP

The inoLab® pH 7310 with backlit graphic display is the right meter for precision measurements of pH and ORP potentials and the automatic documentation according to GLP/AQA in quality labs in all industries. All measured values are transmitted with the current date, time, ID number and sensor serial number (can be entered manually). The meters are available with a built-in printer upon request.

Overview page pH lab benchtop meters

Learn more about choosing the right pH electrode:

Blog: Which pH electrode do I need?

Blog: What is the pH value?

Blog: Calibration and adjustment of a pH electrode

Specifications

Parameter	pH/mV/Temp
Measuring range pH	-2.000 ... 19.999
Measuring range Temperature	-5.0 ... 105.0 oC
Measuring range mV	-1250.0 ...+1250 / -2500...+2500 mV
Accuracy pH +/- 1 digit	+/- 0.005/ +/-0.01/0.1
Accuracy mV +/- 1 digit	+/- 0.3 mV/ +/- 1 mV
Accuracy Temperature +/- 1 digit	+/-0.1 K

Downloads

Manuals

Inolab pH 7310 (P) (Manual, German)
Laborgerät,
Bedienungsanleitung
Download file

Inolab pH 7310 (P) (Manual, English)
Laboratory meter
Operating manual
Download file

Inolab pH 7310 (P) (Manual, French)
Laboratory meter,
Operating manual
Download file

Inolab pH 7310 (P) (Manual, Spanish)
Laboratory meter,
Operating manual
Download file

Inolab pH 7310 (P) Quickstart (Manual, Multi)
Quickstart-Manual
Download file
Handbooks / Whitepaper
pH Handbook (English)
A guide with helpful practical tips

Contents:

Basic concepts of potentiometry and pH measurement

Structure of pH electrodes

Potentiometry of the pH electrode

Buffer solutions and safety in pH measurement

Measuring equipment and measuring set-up

Practical pH measurement

Recommendations for use, maintenance and care of electrode

Download file
Software
inoLab 7310, 7320 - Firmware Update - V1.32
Recommendation: Because of continuous improvement of internal performance we always recommend using the latest firmware version.

Firmware version after successful update:
inoLab pH 7310 V1.21
inoLab Oxi 7310 V1.19
inoLab Cond 7310 V1.21
inoLab pH/ION 7320 V1.10
inoLab pH/ION 7320 V1.14

Download and installation notes:

The necessary cable for connection to PC via serial interface is included in the inoLab® set.

Version history – innovations
V1.32: Solves a problem with the second channel of inoLab® pH/ION 7320
V1.31: Optimisation of the extensions of the display
V1.28: Solves a problem with the representation of the menu screens
V1.26: Various optimizations
V1.25: Various optimizations
V1.24: This update solves a problem in the calibration history. Please note: When installed except the current calibration the history will be deleted, if necessary, please make a copy!
V1.23: Smaller debugging
V1.22: Various optimizations for inoLab® Cond 7310
V1.21: Optimization of AutoRead function

Download file
MultiLab Importer-Setup32
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data)

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
MultiLab Importer-Setup64
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data))

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
Software Update Windows 10 VCP Driver
VCP Driver,
MultiLine, inoLab, ProfiLine, HandyLab and Lab,
Software Update for Windows 10
Download file
Flyers / Brochures / Catalogues

InoLab 7000 Serie (Flyer, German, 999081D)
Flyer, 8 Seiten, German, 999081D
"pH, ISE, LF und O₂ Messen - Genau, Zuverlässig, Selektiv"
Download file

InoLab 7000 Serie (Flyer, English, 999081US)
Flyer, 8 Seiten, English, 999081US
"Measurement of pH, ISE, conductivity and dissolved oxygen - accurate, compliant and sensitive"
Download file

InoLab 7000 Serie (Flyer, Spanish, 999081ES)
Flyer, 8 Pages, Spanish, 999081ES
"Measurement of pH, ISE, conductivity and dissolved oxygen - accurate, compliant and sensitive"
Download file
