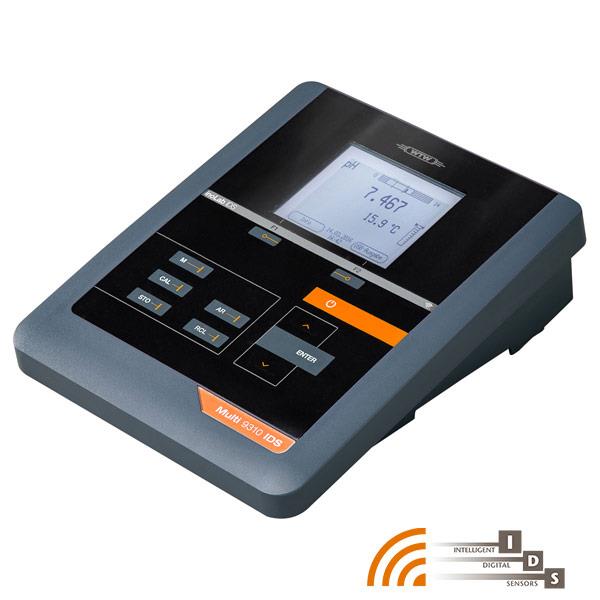

inoLab® Multi 9310 IDS Multiparameter Lab Benchtop Meter

SKU: 1FD350

Option

Request a Quote

Description

inoLab® Multi 9310 IDS - Digital (IDS) Multiparameter Lab Benchtop Meter

inoLab® Multi 9310 IDS: Digital single-channel multi-parameter lab benchtop meter for pH, conductivity, dissolved oxygen and turbidity measurement. Ideal for quality assurance thanks to automatic GLP functions.

Variants
Art.-No.	Name	Description
1FD350	inoLab® Multi 9310 IDS	Single unit with universal power supply, stand, manual, CD-ROM with software and USB cable
1FD350P	inoLab® Multi 9310P	Single unit with built-in printer, universal power supply, stand, manual, CD-ROM with software and USB cable
1FD351	inoLab® Multi 9310 Set 1	Single unit with SenTix® 940, buffer 4, 7, 10.01 and 3 mol/l KCl, universal power supply, stand, manual, CD-ROM with software and USB cable
1FD352	inoLab® Multi 9310 Set 2	Single unit with SenTix® 980, buffer 4, 7, 10.01 and 3 mol/l KCl, universal power supply, stand, manual, CD-ROM with software and USB cable
1FD353	inoLab® Multi 9310 Set 3	Single unit with TetraCon® 925, 0,01 mol/l KCl, universal power supply, stand, manual, CD-ROM with software and USB cable
1FD354	inoLab® Multi 9310 Set 4	Single unit with FDO® 925, universal power supply, stand, manual, CD-ROM with software and USB cable
1FD35C	inoLab® Multi 9310 Set C	Single unit with SenTix® 940, TetraCon® 925, FDO® 925, buffer 4, 7, 10.01 and 3 mol/l KCl, 0,01 mol/l KCl, universal power supply, stand, manual, CD-ROM with software and USB cable

Highlights:

Uncompromising measurement reliability
Future-proof -> ready for the IDS wireless modules
Digital sensor detection
Determine intelligent sensor evaluation safely
One device for up to four parameters: pH/Redox, dissolved oxygen, conductivity and turbidity
The intelligent sensor evaluation (QSC) provides information about the actual condition of the electrode and thus increases operational reliability
Digital signal transmission eliminates interference, reliably assigns calibration data, and transmits sensor data easily
The CMC function visualizes the optimal measuring range and supports correct measuring

The inoLab® Multi 9310 IDS is ideal for digital measurements of pH, redox, dissolved oxygen (optical), conductivity and turbidity in the laboratory. You can also use the new radio modules in conjunction with the new IDS plug-head sensors. IDS technology enables optimal measurements and efficient documentation in the simplest way. A USB interface or an optional built-in printer enable documentation via PC or directly on the device.

Overview page IDS lab benchtop meters

Hier erfahren Sie mehr zur passenden Auswahl der geeignten pH-Elektrode und Antworten zu den Fragen:

Blog: Which pH electrode do I need?

Blog: What is the pH value?

Blog: Calibration and adjustment of a pH electrode

Specifications

Downloads

Manuals

inoLab® Multi 9310 IDS(-P) (German)
Laborgerät,
Bedienungsanleitung
Download file

inoLab® Multi 9310 IDS(-P) (English)
Laboratory meter
Operating manual
Download file

inoLab® Multi 9310 IDS(-P) Quickstart (Multi)
Quickstart-Manual
Download file

inoLab® Multi 9310 IDS(-P) (Spanish)
Laboratory meter,
Operating manual
Download file

OxiTop®-IDS Multi 3630/3620 IDS (German)
Wireless operation of OxiTop-IDS measuring heads,
Operating Manual
Download file

inoLab® Multi 9310 IDS(-P) (French)
Digital system for IDS-sensors,
Operating Manual
Download file

OxiTop®-IDS Multi 3630/3620 IDS (English)
OxiTop-IDS Multi 3630/3620 IDS,
Operating Manual
Download file
Handbooks / Whitepaper
ISE-Handbook (English)

Content:

Basic information - ISE

Description of ion-selective electrodes

Sample preparation

Measurement methods

Maintenance and special information

and more...

Download file
pH Handbook (English)
A guide with helpful practical tips

Contents:

Basic concepts of potentiometry and pH measurement

Structure of pH electrodes

Potentiometry of the pH electrode

Buffer solutions and safety in pH measurement

Measuring equipment and measuring set-up

Practical pH measurement

Recommendations for use, maintenance and care of electrode

Download file
Conductivity Handbook (English)
A guide with helpful practical tips

Content:

Fundamentals - conductivity

Calibration and analytical quality assurance

Measurement and analytical quality assurance

New measurement technologies and specific applications

Optical oxygen measurement and more...

Download file
Oxygen Handbook (English)

Content:

Fundamentals - Oxygen sensors

Calibration and analytical quality assurance

Measurement and analytical quality assurance

Optical oxygen measurement

and more...

Download file
Software
inoLab® Multi 9310 - Windows Software Firmware Update - V2.16
Recommendation: Because of continuous improvement of internal performance we always recommend using the latest firmware version. Download and installation notes: The cable for the serial USB interface is part of the delivery.

Version history – innovations
V2.16: General optimizations and minor bug fixes
V2.15: General optimizations and minor bug fixes
V2.14: Minor updates and optimizations with the usage of the VisoTurb® 900-P
V2.13: Update recommended; solves a problem with oxygen measurement of the last version.
V2.12: Solves a problem when switching the meters on or off: If the meter does not turn on, first perform a reset: Please press simultaneously “Menu – Enter” and “On/Off”, this will boot the meter automatically (without losing data).
V2.11: General optimizations and minor bug fixes
Download file
MultiLab Importer-Setup32
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data)

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
MultiLab Importer-Setup64
Software

Version history – innovations

V 1.25: MultiLab Importer (Excel Add-In for acquisition of measured data)

Allows measurement and data entry of barcoded sample-ID via PC-connected barcode Reader for Turb® 750, Turb 430® and photoFlex® Series

V 1.24: MultiLab Importer (Excel Add-In for acquisition of measured data))

New: Includes now photometers and turbidity meter of pHotoFlex series, Turb 430 and Turb 750 models

General improvements

V1.23: Enhancements for MultiLab Importer

New Download of OxiTop®-IDS measurement date possible (results and measurement parameters)

Enhancement at transfer of electrochemical measurement results.

Download file
MultiLine® Multi 3620 IDS/3630 IDS, Multi 36x0- Firmware Update V3.14
Download and installation notes:

Before installation please read the instruction manual.
System Requirements:
Microsoft Windows 2000, Windows Server 2003, Windows XP, Windows Vista or Windows 7

Version history – innovations:

Version V3.14:

OxiTop-IDS: Fixed a bug when inserting spaces in the set description

OxiTop-IDS : Problem with multiple creation of Cal-Sets fixed

Fixed a bug that caused the device to crash after AutoPrt.

Version V3.13:

The authorizations for MultiLab User can also be assigned without a connected sensor

Version V3.12:

Detection of the conductivity measuring cell 4320W (YSI) has been implemented

Version V3.11:

Fixed a bug with manual data saving (missing data).

Revision of the AutoRead functionality when saving manually. "Frozen values" (HOLD function) are retained until a new measurement is initiated.

AutoSto extension: If desired, the measurement can be resumed automatically if there is a change in the sensor configuration or a temporary sensor failure has been resolved.

V3.01: Allows the conventional operation of OxiTop®-IDS heads which had been working at an IDS Gate.
V3.00: Update for connecting OxiTop^®-IDS measuring heads
Download file
MultiLab User - Software Update V2.00
MultiLab User (PC-Software) for generation of User Administration for following devices: Turb ® 750 Serie and Multi 3630 IDS, Multi 9630 IDS, Multi 3620 IDS, Multi 9620 IDS, Multi 3510 IDS and Multi 9310 IDS.

No administration rights required.
Requirements: Win 10, free USB connecion or USB-Hub (USB driver)
Version: V2_00
Installation: Unzip "Install_MulitLabUser_V2-00.zip" and install by following on-screen instructions
Download file

Software Update Windows 10 VCP Driver
VCP Driver,
MultiLine, inoLab, ProfiLine, HandyLab and Lab,
Software Update for Windows 10
Download file

MultiLine® Multi 3620 IDS/3630 IDS, inoLab® Multi 9620 IDS/9630 IDS - Firmware Update IDS WLM-M V3.01
Download and installation notes:
Before installation please read the instruction manual.
System Requirements:
Microsoft Windows 2000, Windows Server 2003, Windows XP, Windows Vista or Windows 7
Version history – innovations:
V3.01: Allows the conventional operation of OxiTop®-IDS heads which had been working at an IDS Gate.
V3.00: Update for connecting OxiTop^®-IDS measuring heads
Download file
