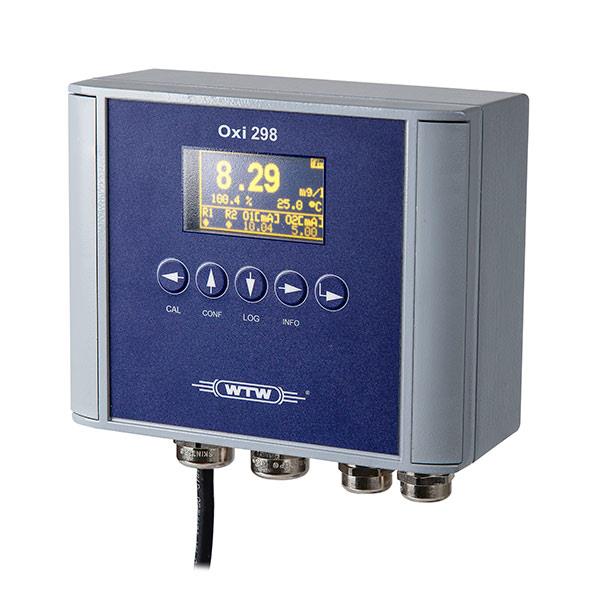

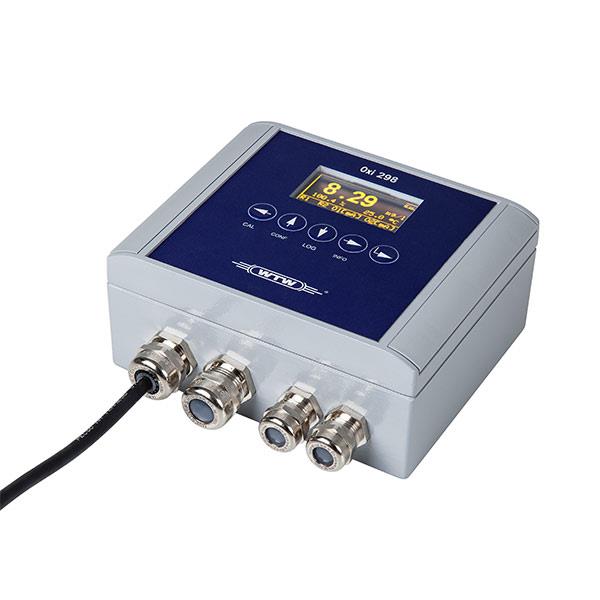

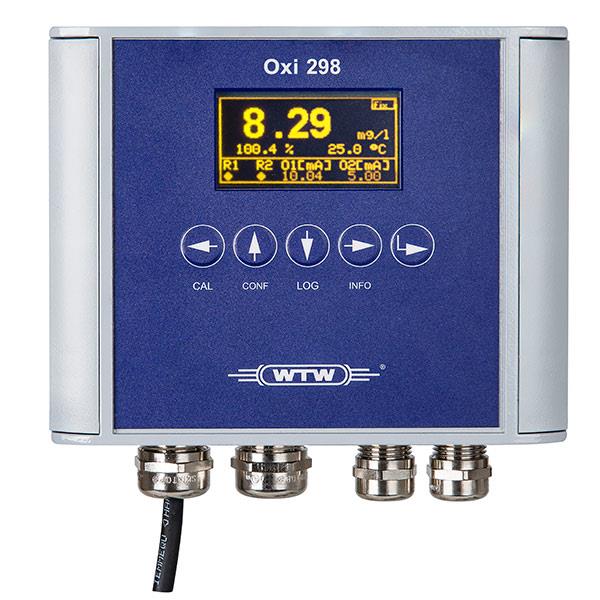

Oxygen field monitor Oxi 298 - WTW

  • SKU: 291230
Request a Quote
  • Description
    Analog controller for oxygen measurement
    Excellent price/performance ratio - analog field monitor for the most varied applications in online oxygen measurement:
    •User friendly and effective by easy handling
    •Safe operation thanks to galvanically isolated outputs
    •Reliable measurements by compressed air compensation and complete sensor monitoring
    The Oxi 298 is an economical and metrologically flexible solution for use in the field. Galvanically isolated inputs and outputs are just as much standard as the complete function monitoring of the monitor and the connected sensor.

    The connected oxygen sensor is continuously monitored for its function. In case of a defective membrane or in case of a used electrolyte, message is displayed and sent via the MODBUS interface.
  • Specifications

    Model

    pH 298

    Oxi 298

    LF 298

    Cl 298

    Order No.

    191230, 191232, 191234

    291230, 291234

    391230, 391234

    801254

    *) Please note: The permitted operating voltage of the sensor can vary considerably

    Parameter

    pH/ORP

    Oxygen

    Conductivity

    Chlorine, elektrochemical

    Measuring Range

    -2 … 16 pH
    -2000 … +2000 mV

    0 … 20 mg/l
    0 … 200 %

    0 … 500 mS/cm, different measuring ranges adjustabel

    0 … 2 mg/l

    Temperature Measurement *)

    -10 … 130 °C
    NTC or Pt1000
    or Pt100

    -10 … 130 °C
    NTC or Pt1000

    -10 … 130 °C
    Pt1000

    Temperature Compensation

    Automatically via temperature measurement in the sensor or via manual input

    Relays

    2 x switching contacts, change-over, max. 250 VAC / 5 A

    Current Outputs

    2 x 0(4) … 20 mA

    Digital Interface

    Modbus / RS485

    USB (for configuration, calibration, data recording)

    Display

    OLED (128 x 64 pixel) with plain text menue

    Data Logger

    Integrated with real time clock for 4000 datasets, storable via USB, grafical display

    Electric Supply

    100 … 240 V AC or 18 … 36 V DC

    Ambient Conditions

    Operational temperature: -10 … 55 °C

    Housing Material

    Cast Aluminium for wall mounting

    Protection Rating

    IP 65

    Weight

    2 kg

    Warranty

    2 years
