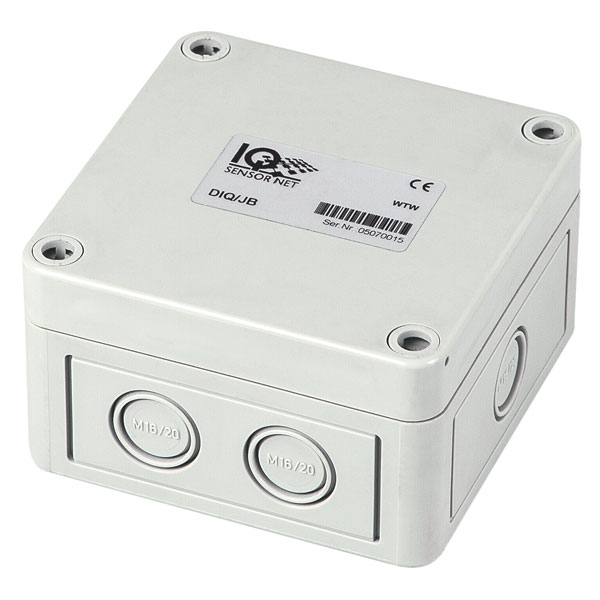

  • product image WTW DIQ/JB, perspective

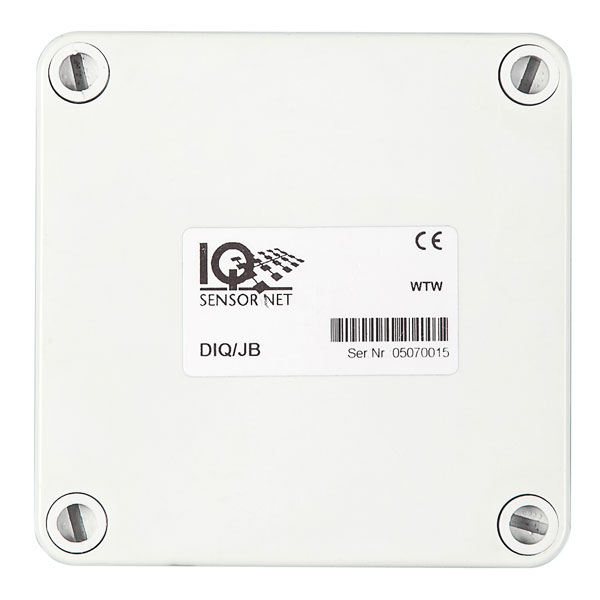

  • product image WTW DIQ/JB, frontal

DIQ modules - WTW

  • SKU: 472005
Request a Quote
  • Description

    Expansion and valve modules for the IQ SENSOR NET systems 282/284 and 281

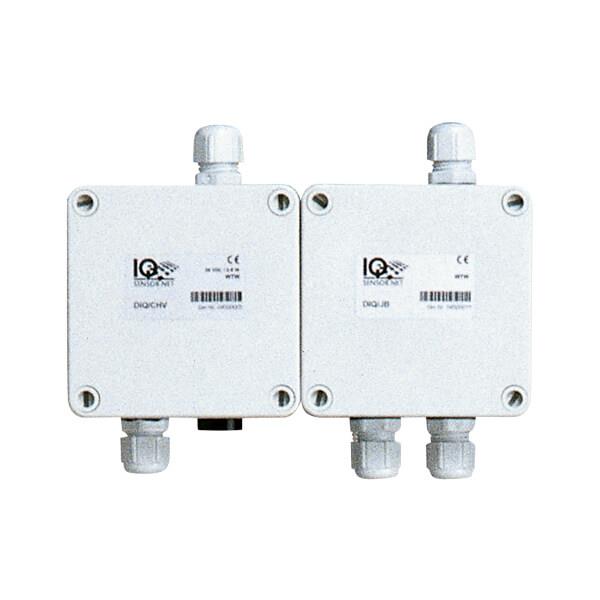

    DIQ/JB and DIQ/CHV

    Modules for the flexible expansion of digital IQ SENSOR NET systems 281 and 282/284 by additional measuring points or functions - compact design:

    • Simple installation – connection and mounting are carried out with terminal boxes and screws
    • The flexible system expansion allows you to upgrade at a later date
    • Its compact design make it space and cost saving

    Modules

    With the DIQ modules, you can upgrade and expand your systems 281 or 282/284 with ease and flexiblity:

    • DIQ/JB Junction Box – Connect another remote or additional IQ sensor by means of the junction box DIQ/JB to your measuring point.
    • DIQ/CHV Cleaning Head Valve – Expand your measuring point by the automatically controlled compressed air cleaning with the module DIQ/CHV („Cleaning Head Valve“).

    Compatibility

    The DIQ modules are flexible extensions for the IQ SENSOR NET System 28x and are compatible with the following monitors:

    • DIQ/S 281 Universal Transmitter to operate up 1 digital IQ sensor
    • DIQ/S 282 Universal Transmitter to operate up to 2 digital IQ sensors
    • DIQ/S 284 Universal Transmitter to operate up to 4 digital IQ sensors
  • Specifications

    Models DIQ-Modul

    DIQ/JB

    DIQ/CHV

    Order No.

    472005

    472007

    Cable Feeds

    3 screw cable glands M 16 x 1.5

    2 screw cable glands M 16 x 1.5 and 2 pressure hose nozzle

    Terminal Connections

    Screw terminal strips
    Terminal area for solid conductors: 0.2 ... 4.0 mm2
    Terminal area for flexible conductors: 0.2 ... 2.5 mm2
    accessible by opening cover

    Housing Material

    Polystyrene

    Protection Rating

    IP 66

    Dimensions (W x H x D)

    94 x 94 x 57 mm (3.7 x 3.7 x 2.24 in.)

    Weight

    0.44 lbs (0.2 kg)

    0.66 lbs (0.3 kg)

    Certifications

    CE

    Electromagnetic Compatibility

    EN 61326-1, Emission: Class A, FCC Class A

    Integrated Overvoltage Protection

    According to EN 61326-1 enhanced overvoltage protection for the entire system

    Connection Medium Cable

    IQ Sensor Net cable SNCIQ or SNCIQ/UG (underground cable with additional PVC coating): ­
    2-wire with shield; 2 x 0.75 mm2; Filler cord for easy connection of shield: 0.75 mm2; pressure resistant to 10 bar

    Connection Characteristics

    Energy and data transfer via 2 wire technique; resistant to reversed polarity; Comprehensive EMC shield control; cable topology within IQ Sensor Net system as required, e.g. in the form of a line, tree, star, multiple star; Total cable length: max. 250 m/273 yds

    Warranty

    3 years for defects of quality
