Junction boxes to connect analog pH, ORP or conductivity sensors to the IQ SENSOR NET
Junction box for pH or ORP sensors

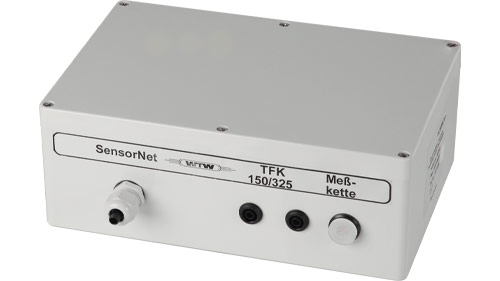

Kl/pH-MIQ/S: Connection box as wallmounting device, for high impedance plug head electrode use on IQ SENSOR NET Systems. K 5 S and TFK 150/325 temperaturesensor separately necessary. Dimensions, W x H x D: 240 x 165 x 95 mm. Protection: IP 65
Junction boxes for conductivity sensors
KI/LF-0,9/MIQ: Connection box for 2- and 4-electrode conductivity cells with NTC for use with IQ SENSOR NET systems with a cell constant of 0.917 cm-1. Dimensions, W x H x D: 240 x 165 x 95 mm. Protection IP 65.
KI/LF-0,7/MIQ: Connection box for 2- and 4-electrode conductivity cells with NTC for use with IQ SENSOR NET systems with a cell constant of 0.778 cm-1. For connection to laboratory-cells an adapter is required (303212 ADA AMPH LAB LF). Dimensions, W x H x D: 240 x 165 x 95 mm. Protection IP 65.
KI/LF-0,4/MIQ: Connection box for 2- and 4-electrode conductivity cells with NTC for use with IQ SENSOR NET systems with a cell constant of 0.475 cm-1. For connection to laboratory- cells an adapter is required (303212 ADA AMPH LAB LF). Dimensions, W x H x D: 240 x 165 x 95 mm. Protection IP 65.
KI/LF-0,1/MIQ: Connection box for 2- and 4-electrode conductivity cells with NTC for use with IQ SENSOR NET systems with a cell constant of 0.1 cm-1. For connection to laboratory- cells an adapter is required (303212 ADA AMPH LAB LF). Dimensions, W x H x D: 240 x 165 x 95 mm. Protection IP 65.
Connection cable for consuctivity junction boxes
ADA/AMPH-LAB-LF: Adapter for mounting of laboratory conductivity cells to conductivity junction boxes
