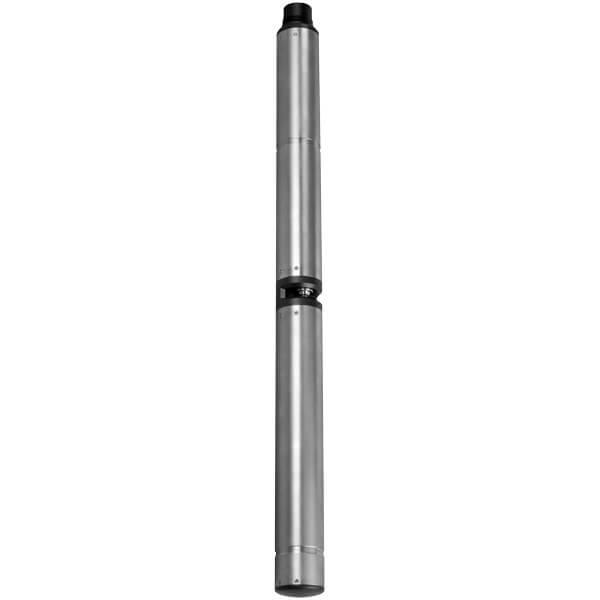

Model
UV 701 IQ NOx
UV 705 IQ NOx
Order No.
481034
481035
Measuring method
UV Single Wavelengths Absorption Measurement
Measuring gap (optical layer thickness)
1 mm
5 mm
Application (optimized for)
Municipal wastewater with a low proportion of industrial wastewater, waste water treatment plants, surface water
Measuring range and Resolution
NOX
0.0 ... 500.0 mg/l 0.1 mg/l
0.0 ... 100.0 mg/l 0.1 mg/l
NOX-N
0.0 ... 20.0 mg/l 0.1 mg/l
Flow rate
≤ 3 m/s
Pressure Resistance
Maximum 1 bar (incl. sensor connection cable)
Electrical connections
2-wire shield cable with quick fastener to sensor
Electromagnetic Compatibility
EN 61326, Class B, FCC Class AIntended for indispensable operation
Certifications
CE
Mechanical
Housing: Titan Grade 2, PEEKWindow: Sapphire glassProtection class: IP 68
Weight (without cable)
Approx. 8.82 lb (4 kg)
Warranty
2 years for defects in quality
IQ Sensor Net NOx sensor,Operating manual
UV 701 IQ NOx: UV 705 IQ NOx SENSORE OTTICO PER NITRATI (NOx)MANUALE D'USO
CZUJNIK OPTYCZNY AZOTANÓW (NOx)Operating manual
OPTISK SENSOR FOR NITRAT (NOx)Operating manual
SENSOR ÓPTICO PARA NITRATOS (NOx)Operating manual
OPTISK SENSOR FÖR NITRAT (NOx)Operating manual
Flyer, 4 Seiten, German, 999132D,"SAK/UVT und Nitrat messen - Reduzieren sie die Wartung auf ein minimum"
Flyer, 4 pages, German, 999102D"IQ SENSOR NET – das System: Sicher - Modular - Flexibel"
Flyer, 4 pages, English, 999102US"IQ SENSOR NET – the range: Secure - modular - flexible"
Flyer, 4 pages, Polish, 999102PL"System IQ SENSOR NET: bezpieczny. modułowy. elastyczny."
Flyer, 4 Pages, English, 999132US,"SAC/UVT and Nitrate measurement - Reduce Maintenance to a minimum"
Flyer, 4 pages, French, 999102FR"IQ SENSOR NET - La gamme : sûr, flexible, modulable."
Flyer, 4 Pages, Italian, 999132IT,"Misurazioni di SAC/UVT e nitrato - Riduione della manutenzione al minimo"
Flyer, 4 Pages, French, 999132FR,"Mesure de UV 254 nm ou Nitrates - Reduisez la Maintenance au minimum"
Data sheet D2.14 English, 999237USOptical nitrate sensor UV 70x IQ NOx
Data sheet D2.14 German, 999237DOptischer Nitratsensor UV 70x IQ NOx
