IQ pH/ORP armatures - WTW

  • SKU: 109170
Request a Quote
  • Description

    Digital pH/ORP armature to be used with electrodes, connectable to the IQ Sensor Net

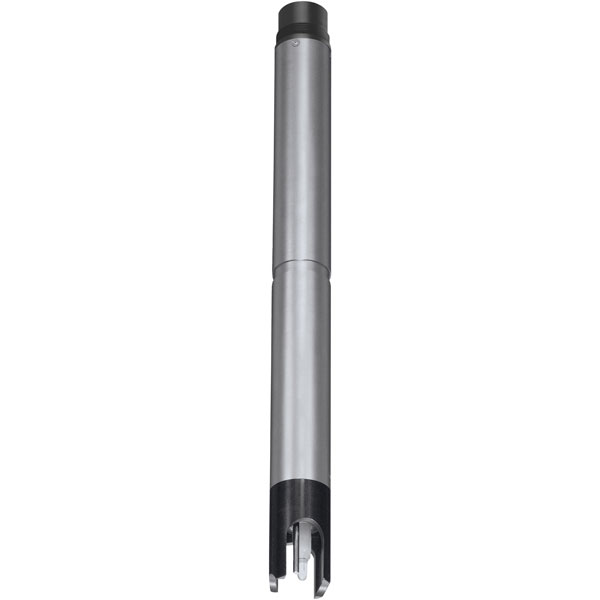

    SensoLyt® 700 IQ – digital pH/ORP armature with integrated preamplifier and temperature sensor as well as lightning protection to be connected to IQ Sensor Net:

    • Stable signals by digital signal processing
    • Convenient by calibration in the lab and glass breakage detection
    • Reliable measured values by integrated temperature sensor

    By storing calibration values within the sensor, a "pre-calibrated pH-measurement" can be generated. Due to our quick-lock, the sensor can be disconnected and – after laboratory calibration – re-connected at the site easily. Inconvenient calibrations in the field under adverse conditions can be completely eliminated if there is an IQ connection in the lab.

    A special switch also allows automatic monitoring for glass breakage. The required replacement of the SensoLyt® electrode is quick and uncomplicated.

    Models:

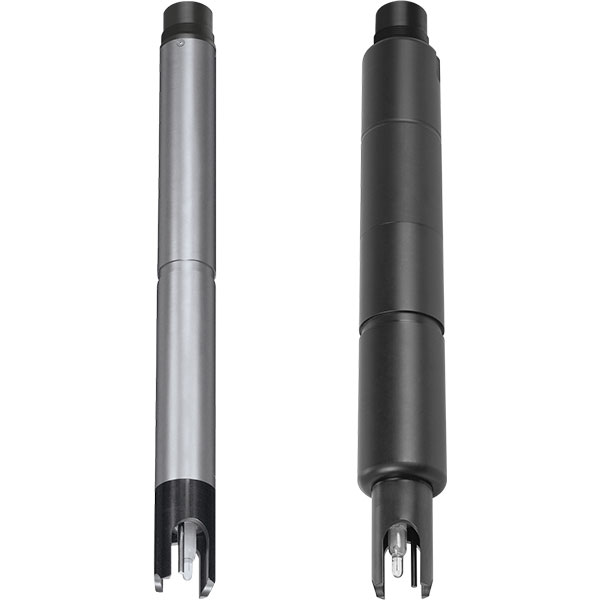

    • SensoLyt® 700 IQ: Digital pH/ORP fitting for SensoLyt® electrodes, with integrated preamplifier and temperature sensor (please order cable separately) to be connected to IQ Sensor Net
    • SensoLyt® 700 IQ SW: The sea water model is optimized for the use in special media such as desalination plants, seawater or brackish water, fish farming or high salt content. All wetted parts are made of titanium and plastic and are therefore extremely resistant to corrosion.
    • SensoLyt® 700 IQ/SET: SensoLyt® 700 IQ including SensoLyt® SEA pH electrode and 7 m connecting cable
    • SensoLyt® 700 IQ/SET1: SensoLyt® 700 IQ including SensoLyt® PtA ORP electrode and 7 m connecting cable

    Applications:

    • Wastewater
    • Drinking water
    • Aquaculture
    • Surface water
    • Industry
  • Specifications

    * SW: Sensor as sea water model (with plastic arming (POM))

    2 years warranty from Xylem Analytics for this product   Icon: CE Product Certification for Xylem Analytics Products   Icon: UKCA Product Certification for Xylem Analytics Products   Icon: Xylem Analytics Products that is cETL listed by Intertek   Icon: Xylem Analytics Products that is ETL listed by Intertek

    detailed technical data see data sheet D2.03

    Model

    SensoLyt® 700 IQ

    SensoLyt® 700 IQ SW*

    Order No.

    109170

    109171

    Measuring method

    Potentiometric

    Measuring range

    		 0,00 ... 14,00 pH (depending on the electrode)
    ± 2000mV (depending on the electrode)

    Resolution

    0,01 pH
    1 mV

    Accuracy

    Depends on calibration
    ± 0,2 pH; ± 20 mV

    Temp. measurement

    Integrated NTC, -5 °C ... +60 °C

    Ambient conditions

    Operating temperature: 0 °C ... +60 °C

    Electrical connections

    2-wire shield cable with quick fastener to sensor

    Weight (without cable)

    Approx. 970 g

    Approx. 1.800 g

  • Accessories
    Cable

    Cable

    Sensor and connection cables for the IQ SENSOR NET
    Sensor Mounting

    Sensor Mounting

    Extensions and holders to mount 1 to 3 IQ sensors or analog process sensors
    Flow-through Adapters

    Flow-through Adapters

    Flow-through Armatures and weld-in sockets made of PVC or stainless steel. Please order suitable sensor fadapter
    (ADA-X) separately (see selection table below).
    Adapters

    Adapters

    Adapters to install 40 mm sensors in flow-through aramutres and vessels
